Tattu R-Line V6 1600mAh 6S1P 22.2V 160C SQ

Semi-solid-state power with 26% more energy density and zero voltage sag.

Tattu R-Line V6 1600mAh 6S1P 22.2V 160C SQ FPV Lipo Battery Pack with XT60U-F Plug

The R-line V6 delivers 26% higher energy density through semi-solid-state architecture and advanced nanomaterial engineering. With genuine 160C burst capability, 20% lower internal resistance, and crash-resistant construction, this pack provides extended flight time, instant throttle response, and zero voltage sag when you need full power. Purpose-built for aggressive freestyle and racing where performance matters.

160wh/kg
Gravimetric energy density.
316wh/l
Volumetric energy density.
160C
Max discharge cureent.
-9.3mΩ
Insulation Resistance.

Semi-Solid-State Technology

26% Higher Energy Density

Semi-solid-state electrolyte achieves 316Wh/L and 160Wh/kg, extending flight time without added weight. Reduced liquid electrolyte improves thermal stability and cycle life for consistent long-term performance.

3D Conductive Network

160C Burst with Zero Voltage Sag

3D conductive network using graphite, carbon nanotubes, and graphene delivers true 160C capability. No voltage drop during punch-outs or full-throttle maneuvers—just instant, stable power when you need it.

3D Conductive Network

Graphite
CarbonNanotubes
Graphene

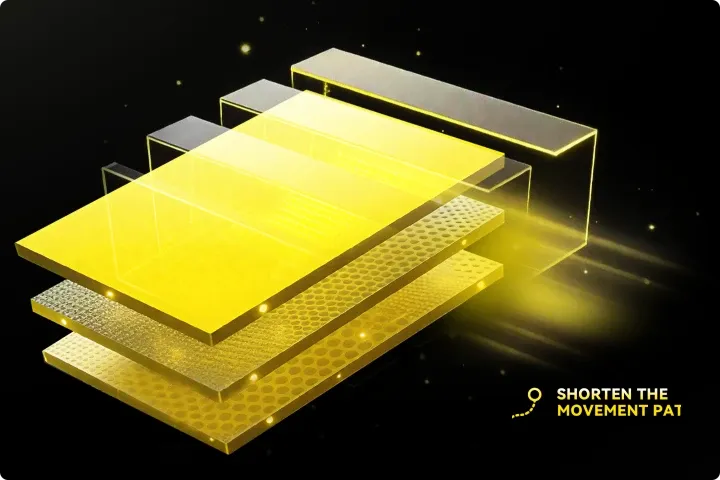

Nanomaterial Electrode Engineering

20% Lower Internal Resistance

Nano-scale electrode design shortens ion pathways, reducing internal resistance by 20%. Razor-sharp throttle response with near-zero latency for precise control in technical flying.

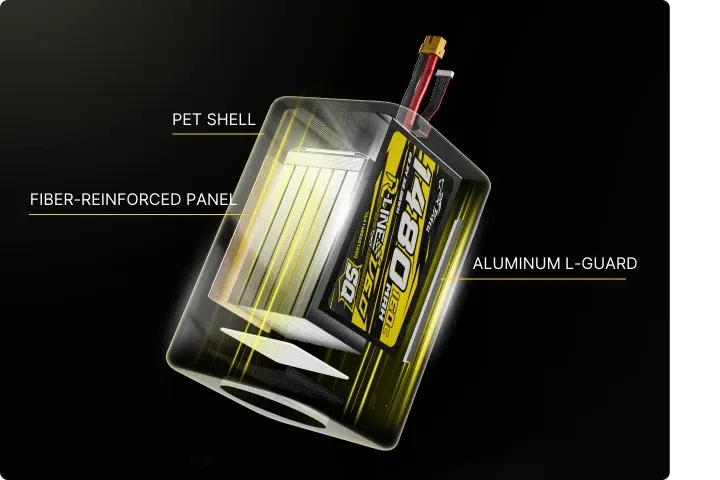

Reinforced PET Shell

Crash-Resistant Construction

Reinforced PET shell with fiber-composite frame protects cells during impacts and maintains stability under high-G loads. Built to survive real-world flying conditions.

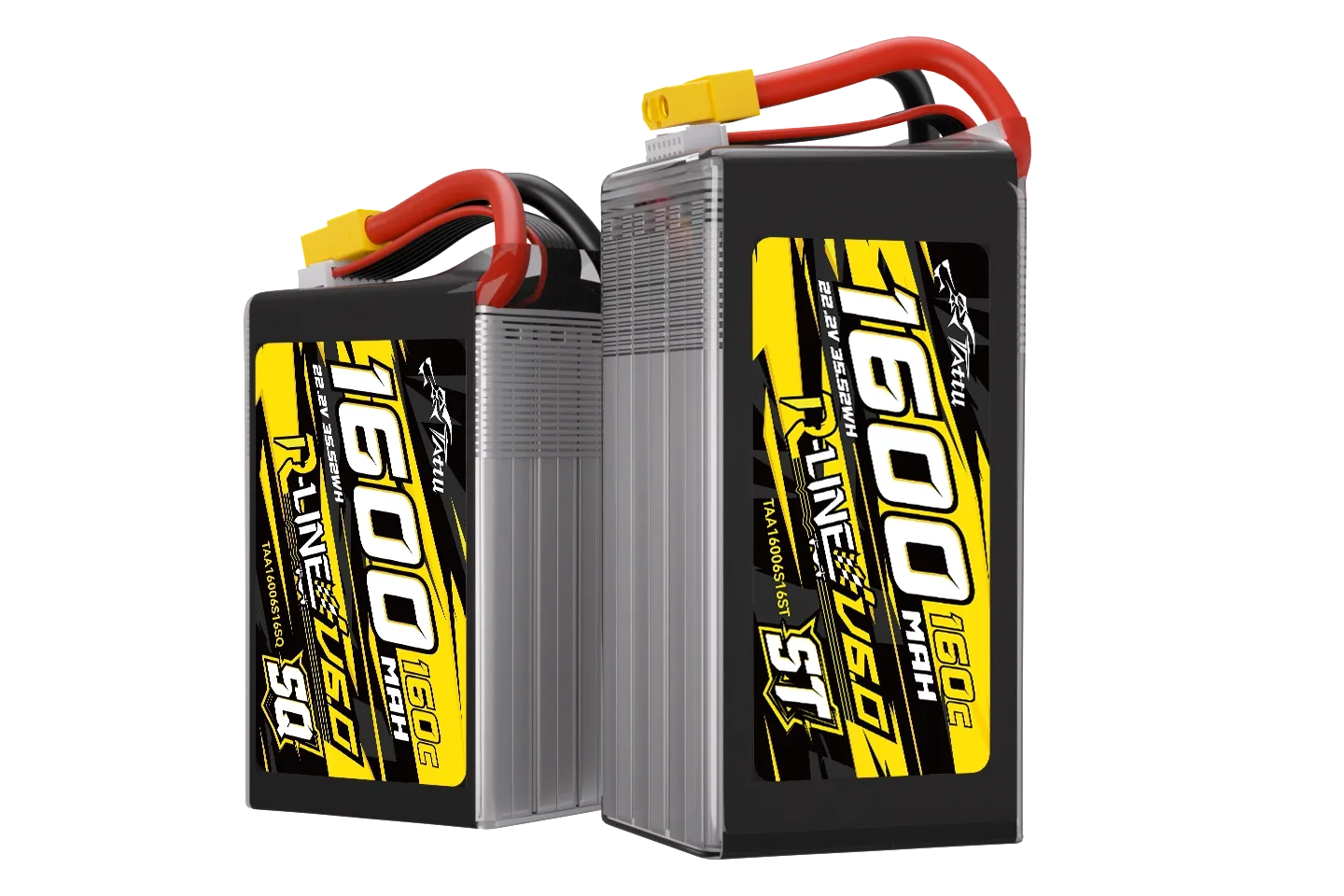

Engineered by Pilots

Optimized Form Factors

SQ (Short) format concentrates mass near FC stack for improved handling. ST (Stick) format offers flexible mounting across various frames. Both deliver identical performance.

R-LINE V5.0 VS R-LINE V6.0

Capacity

Discharge Rate

Size

Weight

Volumetric Energy Density

Gravimetric Energy Density

1550mAh V5

150 C

78x37x52 mm

254 G

11.2 m2

249 Wh/L

137 Wh/kg

            1600mAh V6

            160 C

            77x37.5x40 mm

            240 G

            9.3m2

            316 Wh/L

            160g Wh/kg

+50mAh

+10%

-2%

-14g

+20%

+26%

+17%
