Tattu 3S 11.4V 1100mAh Drone Soccer Battery

Tattu 4S 15.2V 1100mAh Drone
Soccer Battery

Built for F9A-B 200mm Competition.

Tattu 1100mAh 60C 4S1P 15.2V Lipo Battery Pack with XT30 Plug

Designed specifically for F9A-B 200mm drone soccer competition, this pack delivers the fast throttle response, stable voltage output, and lightweight efficiency competitive pilots demand. With 60C continuous discharge, low internal resistance, and reinforced pack protection, it is built to stay sharp under repeated high-load runs.

60C
Max. dischage rate.
1100mA
Nominal Capacity.
15.2V
Nominal voltage.
-500+
Cycle life.

Explosive Throttle Response, Minimal Sag

60C continuous discharge delivers fast, strong power even under heavy load, helping reduce voltage sag
during sharp maneuvers and climbs.

Lower Resistance, Higher Efficiency

Tattu’s Stacking Method lowers internal resistance, sending more power to the motors while reducing heat under high-load use.

Pack-to-Pack Consistency

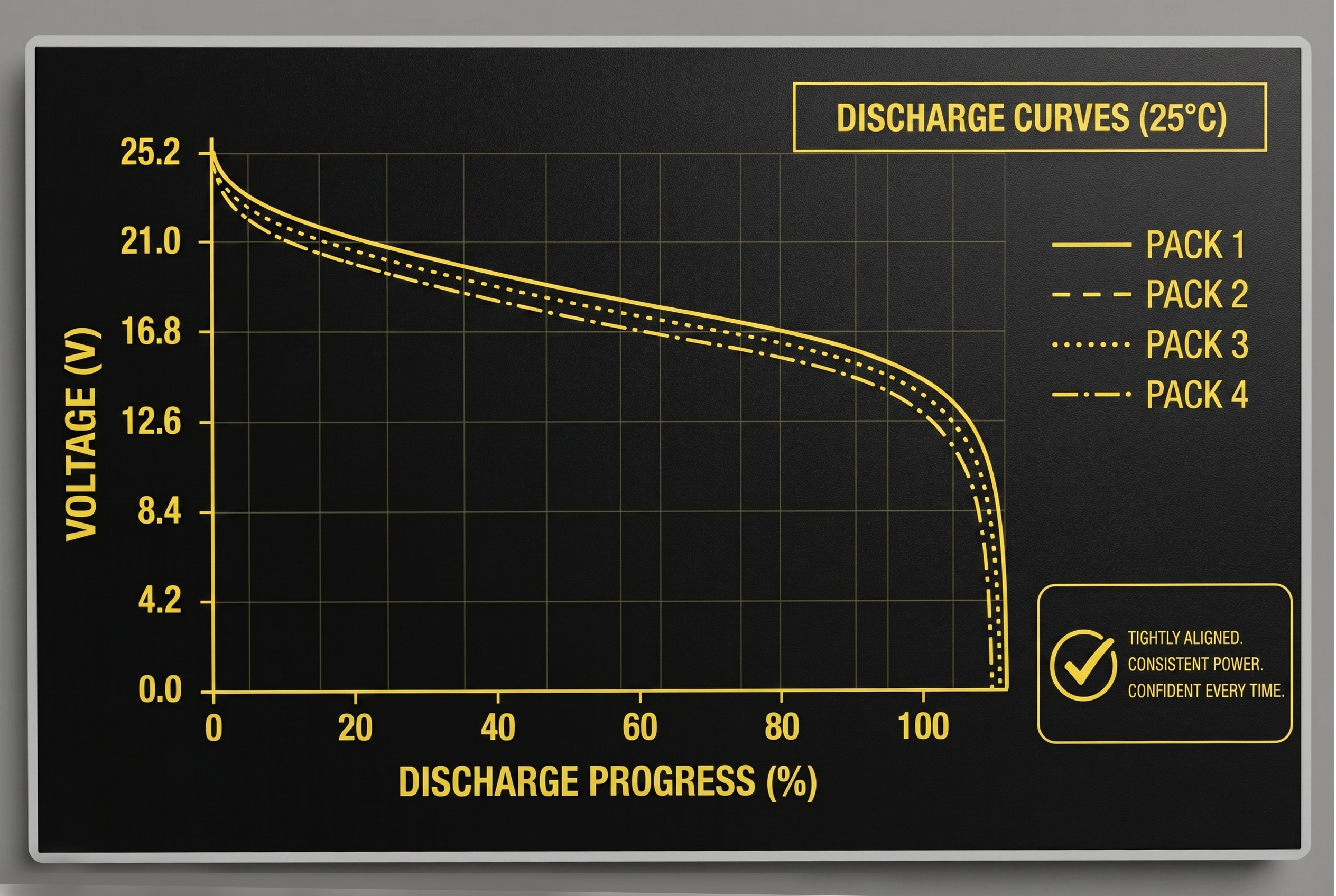

Matched internal resistance and closely aligned discharge curves ensure every pack delivers the same stable feel, so you can swap fast and fly every round with confidence.

Reinforced Protection for Racing Impact

A strengthened structure and durable outer wrap help the pack better withstand hard landings and collisions, reducing the risk of cell damage.

Built for F9A-B 200mm Competition

Tuned for F9A-B 200mm racing, this battery combines fast response, stable voltage, and reliable repeatability for every heat.

Suggested Charger Options

Tattu TA1000 G-Tech Dual-Channel Charger

Learn more

Intrinsic Safety Guaranteed
Ceramic separator prevents short circuits, with multi-level protection against overcharge, over-discharge, and overheating. Flame-retardant casing, UN38.3 certified, and proven safe under extreme tests.
Tailored Power, Perfect Fit.
We design batteries to fit your needs — adjustable in size, weight, voltage, and capacity. Choose your preferred connector, such as XT60, XT90, EC5, or AS150U, for a perfect match with your drone system.

Products

Industries

Support

FAQ

After-sale Service

Downloads

Customized

APP

Resources

News

Case Studies

Blogs

White Papers

About US

About Tattu

Technology

Tattu FPV Legends

Contact Us

Tattu 3S 11.4V 1100mAh Drone Soccer Battery

Tattu 4S 15.2V 1100mAh Drone Soccer Battery

Tattu 1100mAh 60C 4S1P 15.2V Lipo Battery Pack with XT30 Plug

60C

1100mA

15.2V

-500+

Explosive Throttle Response, Minimal Sag

60C continuous discharge delivers fast, strong power even under heavy load, helping reduce voltage sag during sharp maneuvers and climbs.

Lower Resistance, Higher Efficiency

Pack-to-Pack Consistency

Reinforced Protection for Racing Impact

Built for F9A-B 200mm Competition

Suggested Charger Options

Intrinsic Safety Guaranteed

Tailored Power, Perfect Fit.

Specs

Nominal Capacity

22000 mAh(@0.2C)

Energy

488.4 Wh

Nominal Voltage

22.2 V 6S1P

Charge cut-off voltage

25.2 V

Discharge cut-off voltage

213 V

Max Continuous Discharge Current

110 A

Max Pulse Discharge Current

440A (≤ 3S)

Typical Charge Current

4.4A (0.2C)

Maximum Charge Current

22A (1C)

Charge Temperature

10~45 ℃

Discharge Temperature

-20~60℃

Storage Temperature

-20~35℃(<3months)

Weight

2650+100g

Internal Resistance

5.5+2.5mQ

Cycle Life

>300 Cycles

Packaging

Soft Pack
