Tattu 4.0 30Ah 68.4V 18S1P 35C

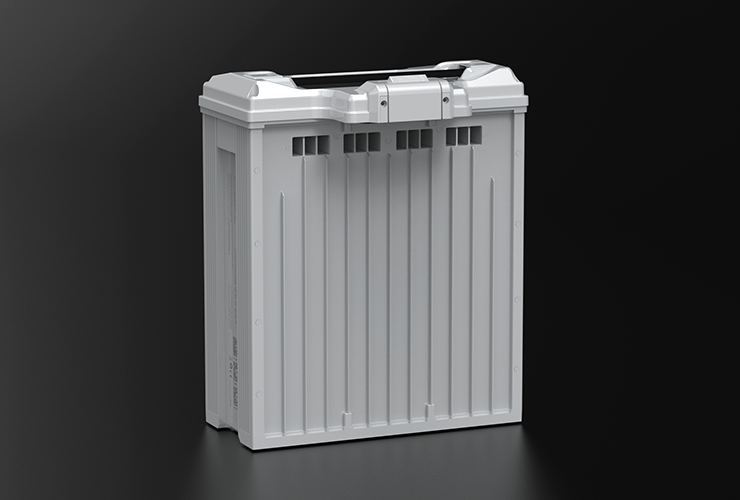

Tattu 4.0 30000mah 68.4V 18S1P 35C Lipo Smart Battery Pack with ACES Plug or Molex Plug

TAG:

Tattu4.0 battery
HighVoltage
TattuUAV
TattuPower
HighPower
DroneBattery

Enqiry Buy Now（USA） Buy Now（EU） Compare

Product Overview
Product Parameters
Download the file
Video material

FEATURES

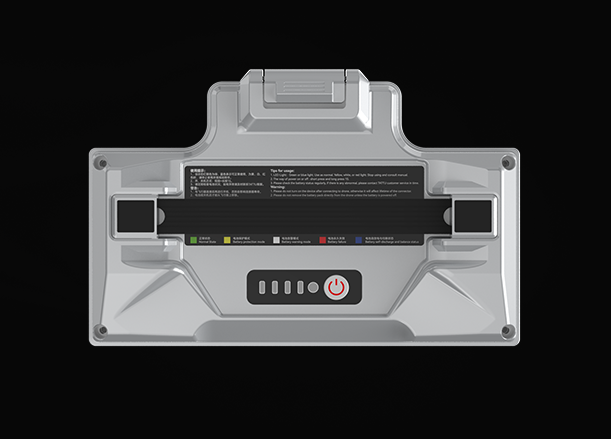

Hard Plug-in Structure, designed for quick and efficient battery replacement.

Plug and play, professional matching

Self-developed BMS Board, ensures comprehensive protection for safe and reliable operation.

Rapid Heat Dissipation

PARAMETERS

Minimum Capacity
30000mAh
Configuration
18S1P
Nominal Voltage
68.4V
Power
2052 Wh
Max Continuous Discharge Current
270A
Peak Discharge Current
360A ≤ 3S
Net Weight(±350g)
13800g
Dimensions
333mm L x 237.5mm W x 175mm H
Discharge Plug
ACES 59615-0149D001 or Molex
Communication Protocol
DroenCAN

TATTU 4.0 SERIES

The Tattu 4.0 is a new upgraded generation smart drone battery with optimized plug & play installation, adopts high energy density cell and advanced BMS, specially designed for a heavy payload drones, 30-50L Agricultural drones, supports max 270A continuous discharge current and 5C fast charging.
