1000W

Maximum Charge Power

25*2

Maximum Charge Current

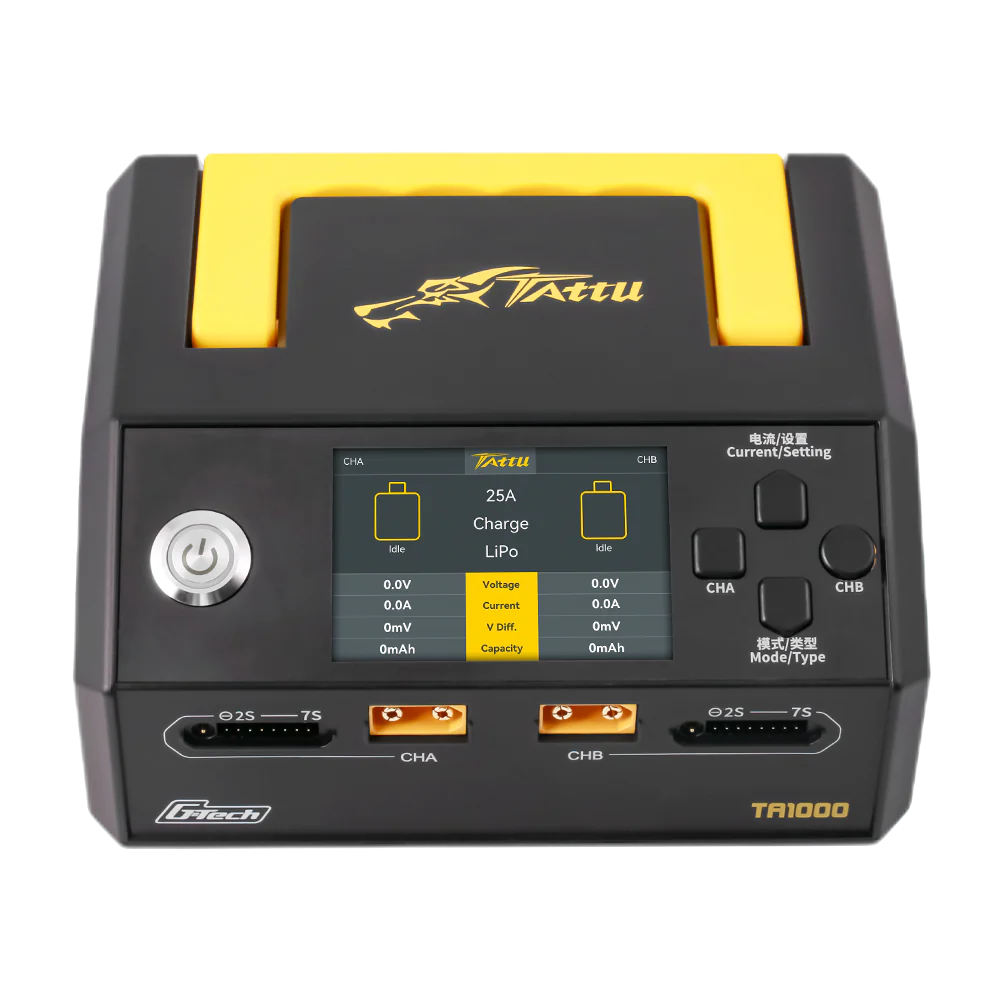

Tattu TA1000 G-tech Dual-Channel Smart Charger – a versatile and intelligent charging solution designed to cater to a variety of batteries.

As a proud member of G-Tech Eco, this charger is specifically tailored for G-Tech smart batteries while remaining compatible with non-G-Tech batteries.

The Tattu TA1000 is the first dual channel smart charger with 1000W max charging power, perfect for industry drone batteries.

G-Tech Eco

Intelligent Recognition with G-Tech technology

Efficiency & Flexibility

1000W,25A Charging Current,1.7kg Weight

Smart & Compatibility

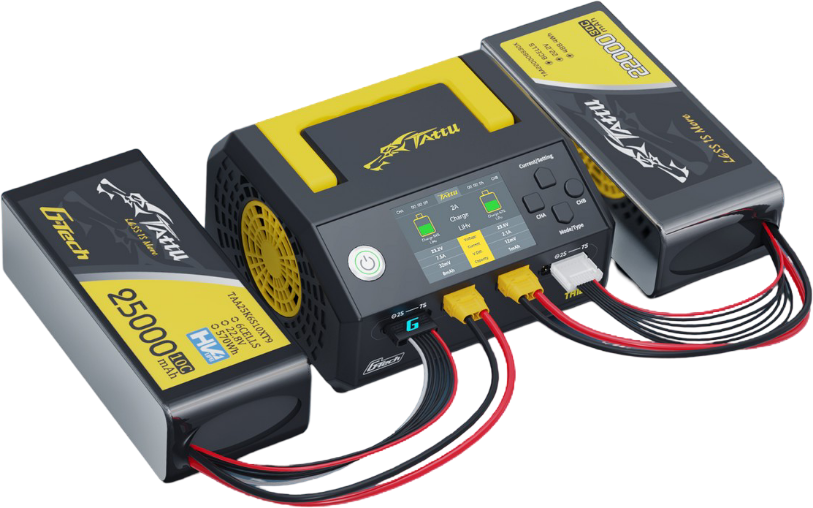

Dual channels,Compatible with Non G-Tech/G-Tech Battery

Safety & Reliability

Real-time monitoring and Comprehensive Protection

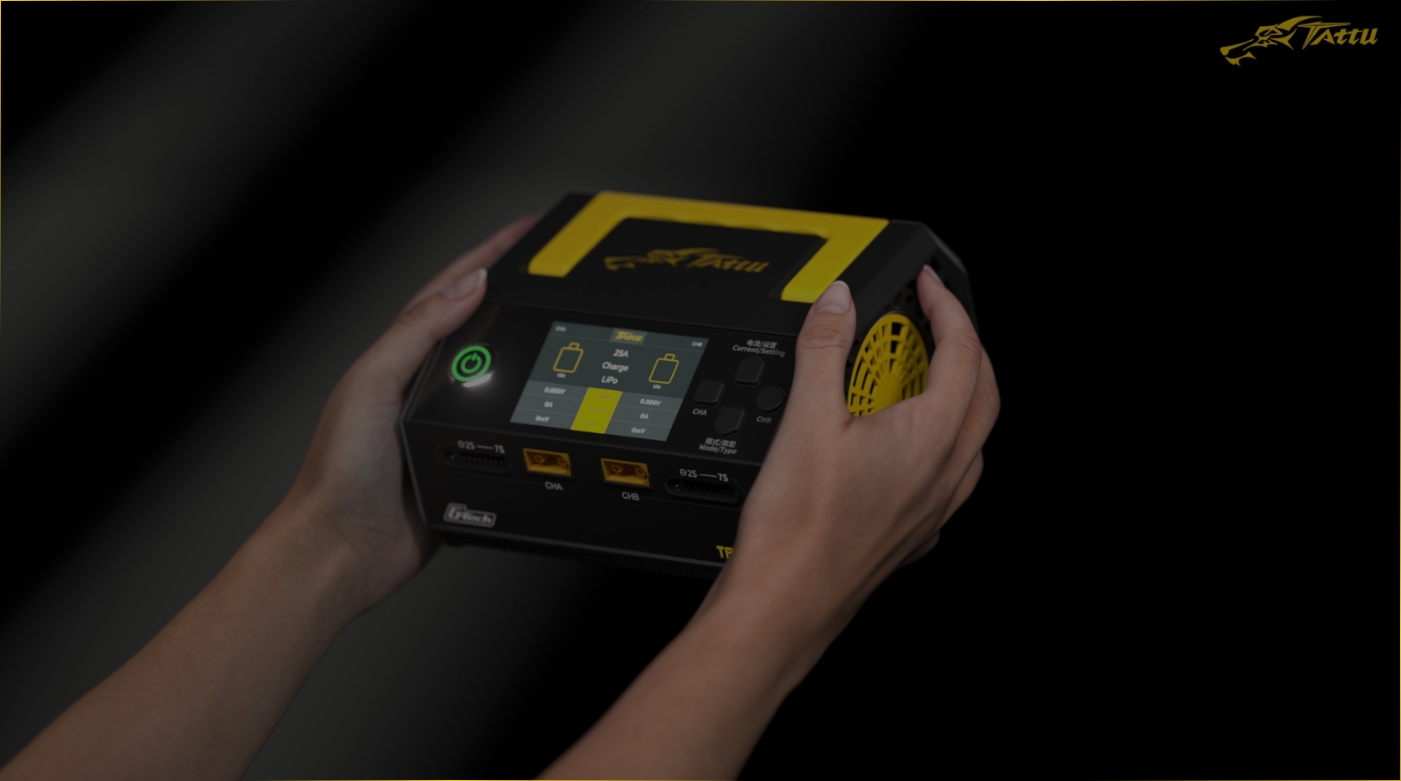

Tattu TA1000Lighter and More Portable

MAX DISCHARGING POWER
70W*2
40 %
WEIGHT:
1.7Kg
-65 %
MAX, CHARGING CURRENT
25A*2
25 %
LENGTH:
186*174*95MM
-23 %

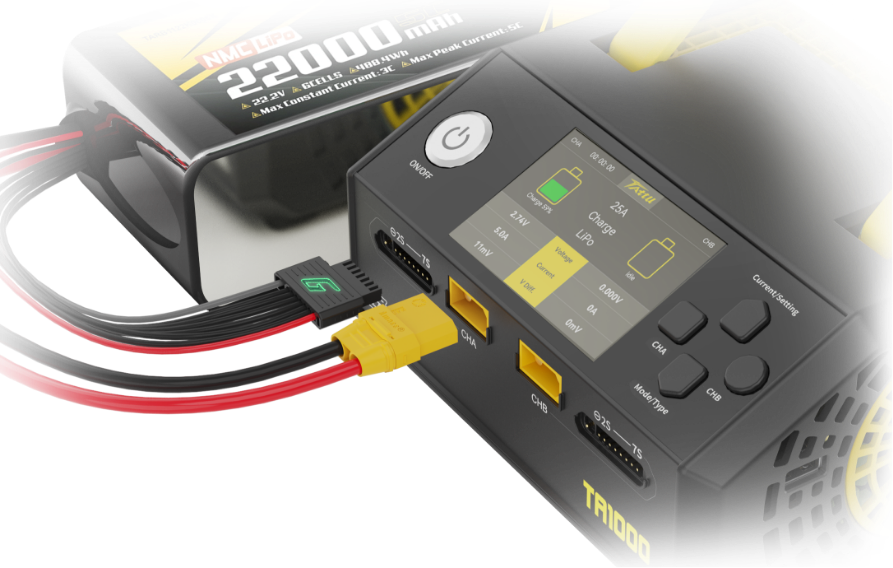

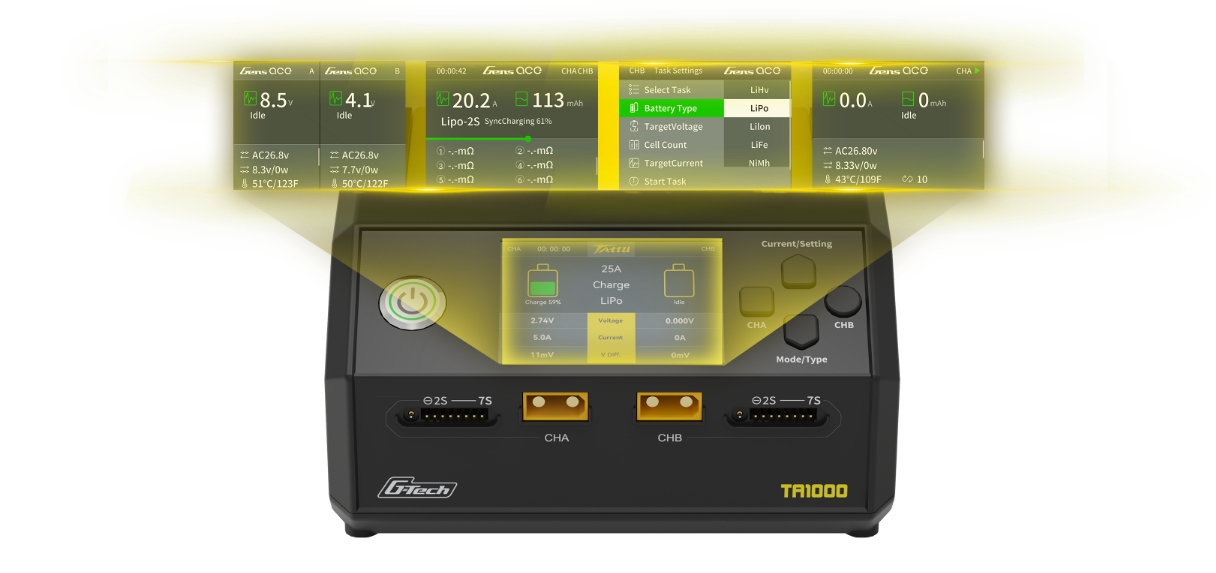

SMART CHARGING

Brand New G-Tech Technology

Protections for over temperature, over current, over charge, charge wire breakage

Optimize the charging parametersaccordingly to prolong battery

Automatically recognize G-Techsmart battery parameters.

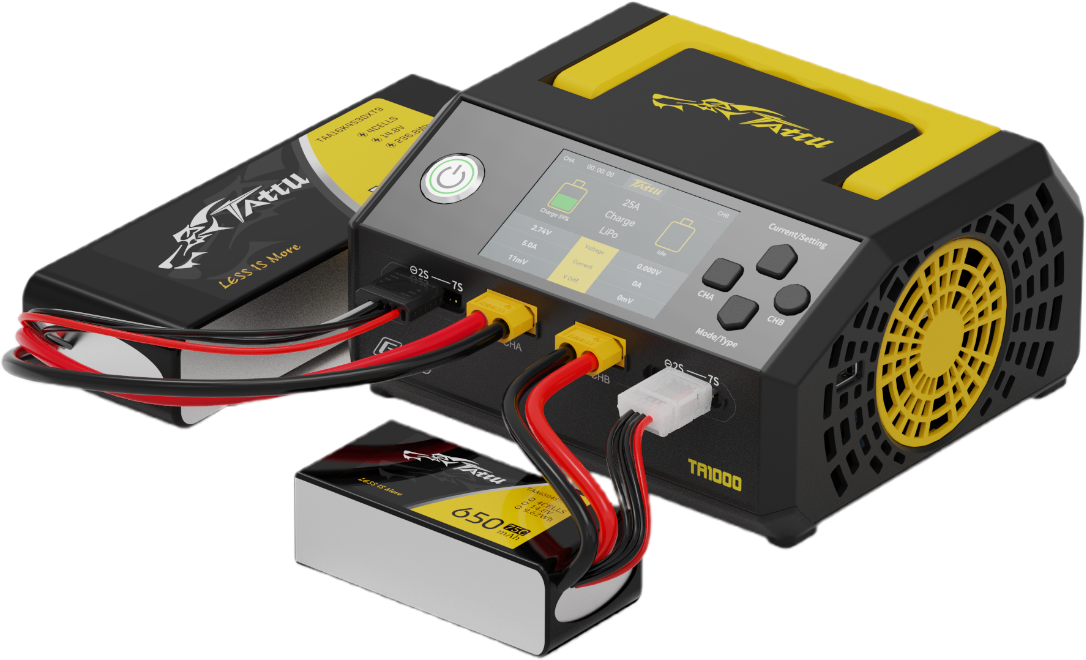

APPLICABLE BATTERIES AND MODELS 1-7S LIPO/LIHV 4.2V-4.45V

No-G-Tech.

G-Tech

Industry Drone

Agriculture Drone

(G-Tech/No-G-Tech)

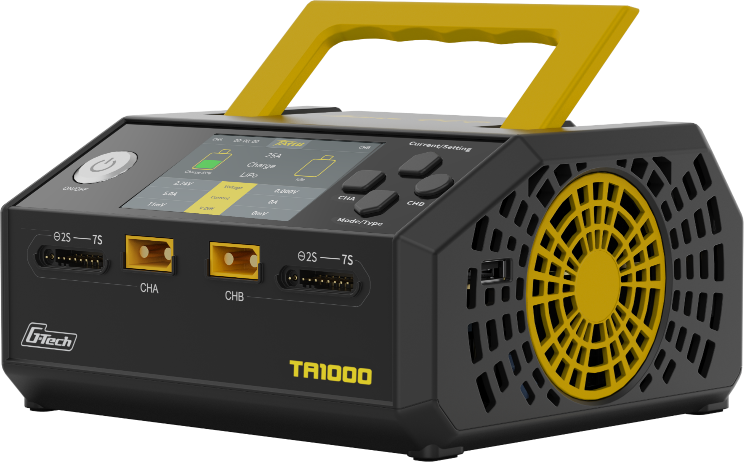

Tattu TA1000

Smart Charger Dual Independent Channe!

AC 500W *2

Smart Chip

Plug-and-Play

Automatically Recognize Battery

What's in the Box

USB-A to USB-A Cable

Manual

AC Power Cord

TA1000

Parameters

Model
TA1000
Input voltage
AC 100-240V 50/60Hz
Output voltage
DC 0~32V
Charging current
Max 25A * 2
Charging current in storage mode
25A * 2
Discharge current in storage mode
6A * 2
Maximum charging power
500W * 2
Maximum charging power in storage mode
500W * 2
Maximum discharge power in storage mode
70W * 2
Working temperature
0~60 ℃
Storage temperature
-20~60 ℃
Dimensions
186x174x95mm
Weight
about 1.7Kg
Supported battery type and number of cells
LiPo/LiHV 1-7S (can support G-Tech plug)
